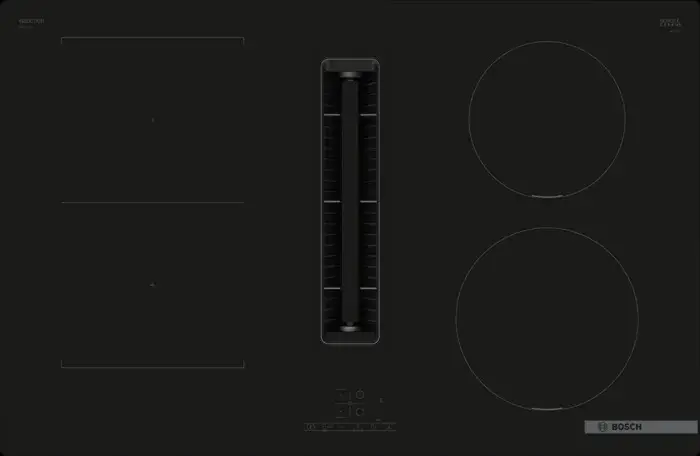

Series 4 Induction Hob with Integrated Ventilation System – 80 cm
Model: PVS811B16E
The induction hob with integrated ventilation module combines powerful induction cooking with advanced ventilation technology for perfect cooking results and a clean kitchen environment.

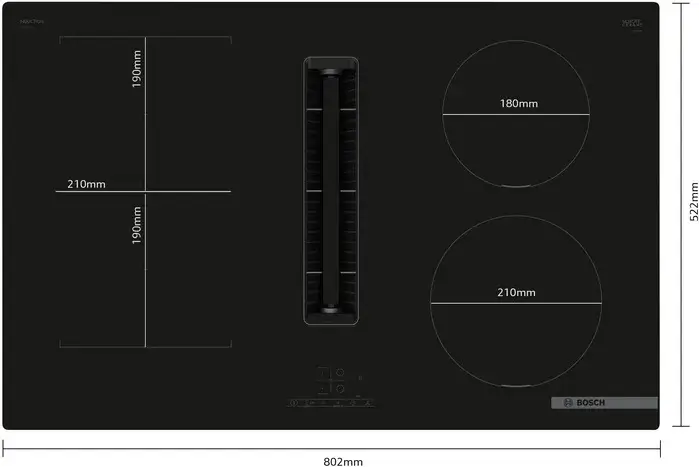

Cooking Zones & Flexibility

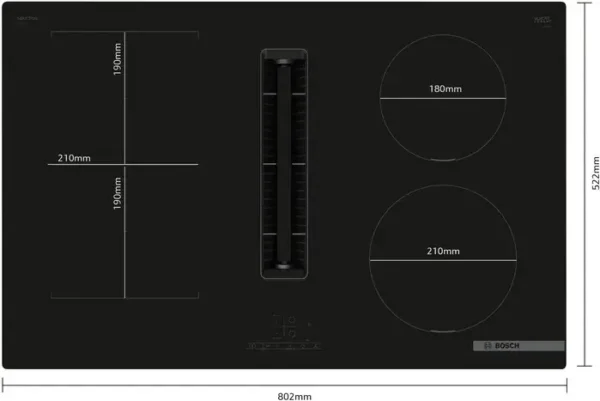

80 cm wide cooking surface with space for up to 4 pots or pans. CombiZone allows two cooking zones to be combined into one large zone for bigger cookware.
Front left cooking zone: 210 mm / 190 mm – 2.2 kW (max. 3.7 kW)
Rear left cooking zone: 190 mm / 210 mm – 2.2 kW (max. 3.7 kW)
Rear right cooking zone: 180 mm – 1.8 kW (max. 3.1 kW)
Front right cooking zone: 210 mm – 2.2 kW (max. 3.7 kW)
Ease of Use
TouchSelect control with imprinted +/- touch buttons. Each cooking zone features 17 power levels (9 main levels and 8 intermediate levels) for precise heat control.
Switch-off timer automatically turns off the cooking zone after the set time. Count-down timer provides an audible signal when the set time has elapsed.
Time Saving & Performance
PowerBoost function on all zones delivers up to 50% more power for faster boiling. QuickStart automatically detects cookware placement. ReStart restores previous settings after accidental switch-off. QuickStop allows fast deactivation of a cooking zone.

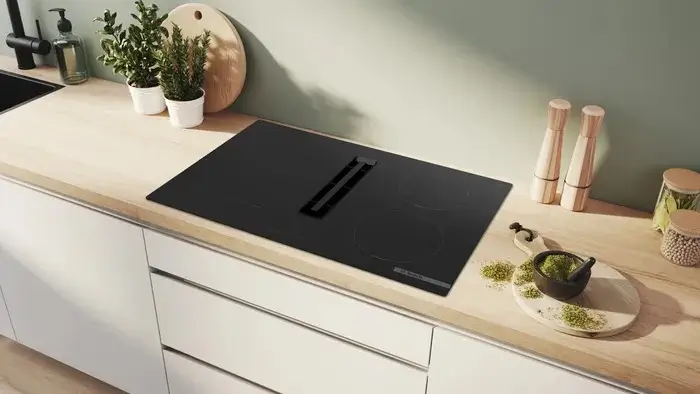

Design

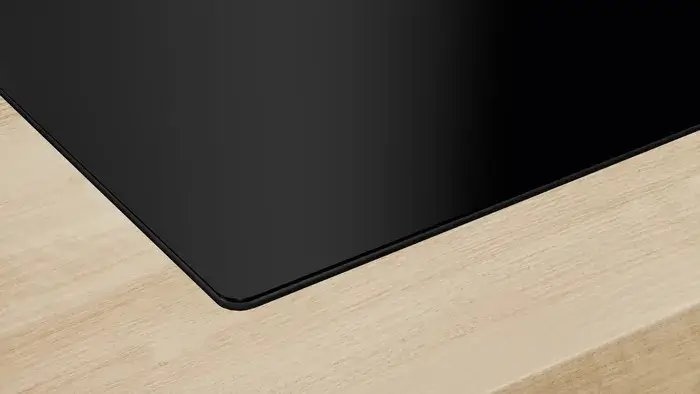

Elegant frameless design for a modern, seamless kitchen look.
Safety Features
Two-stage residual heat indicators show which zones are still hot or warm. Control panel lock prevents accidental operation. Main on/off switch allows immediate shutdown of all zones. Automatic safety shut-off activates after extended inactivity.
Installation Details

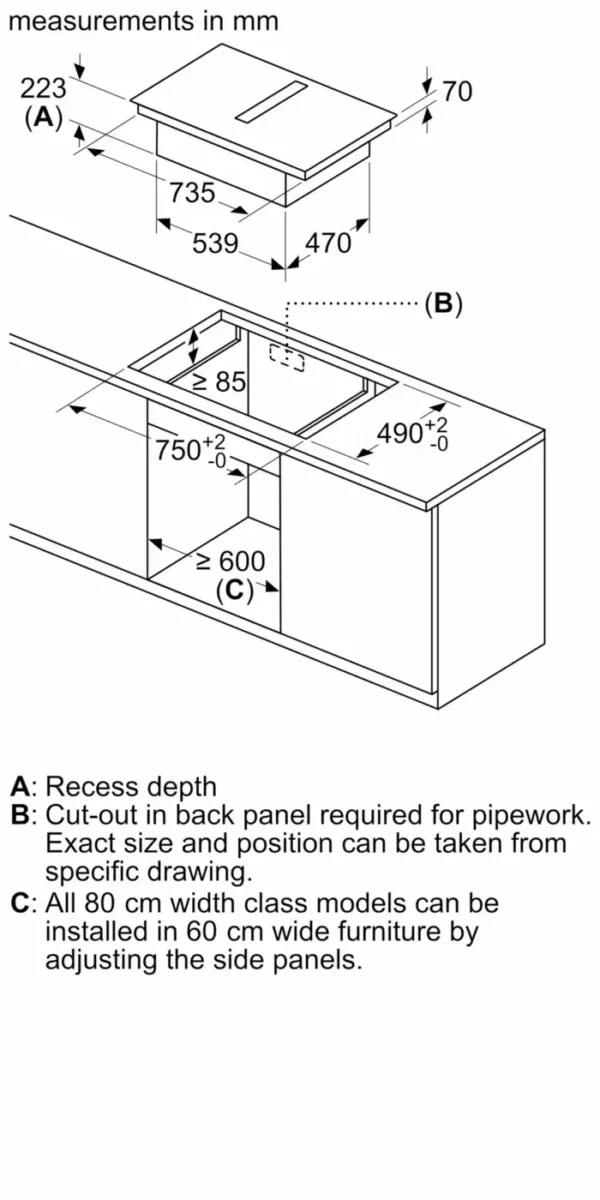

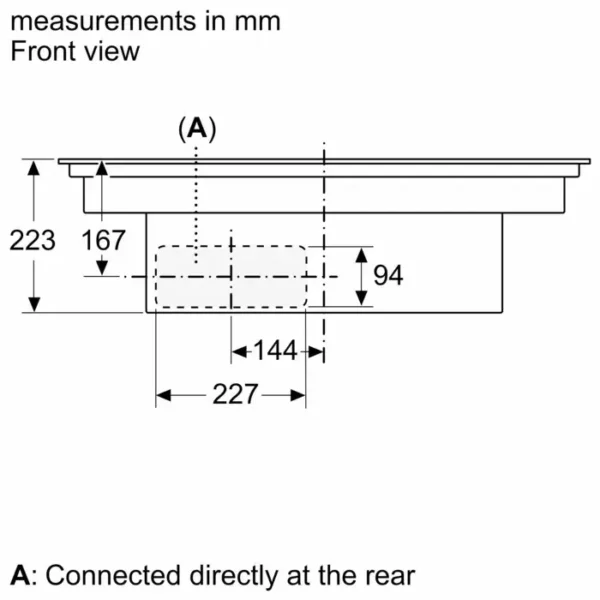

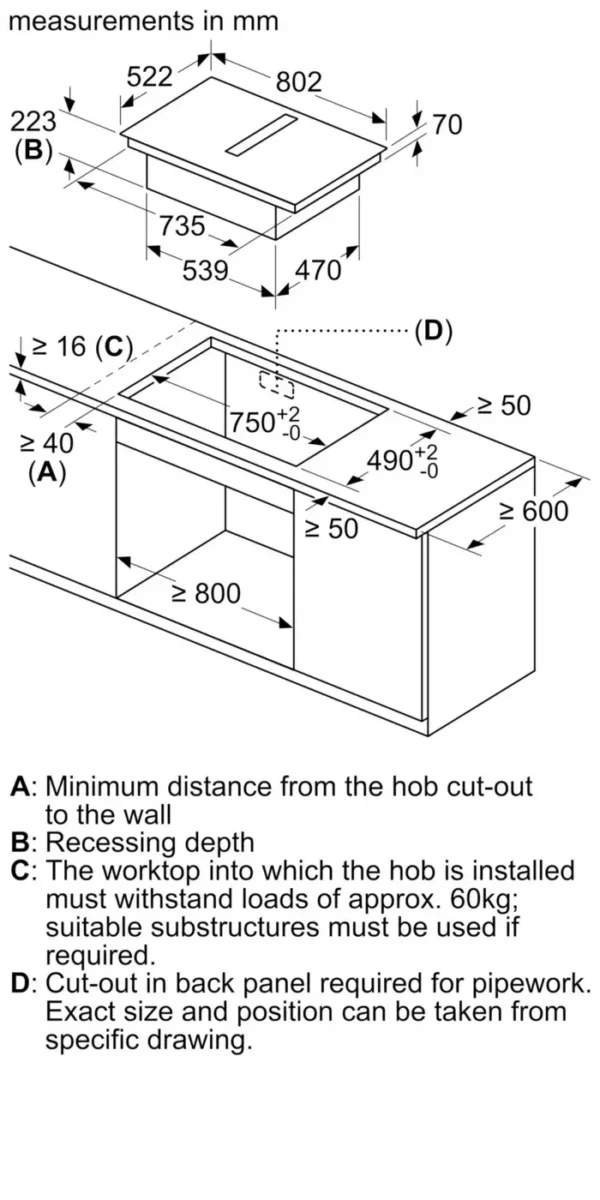

Appliance dimensions (H x W x D): 223 x 802 x 522 mm

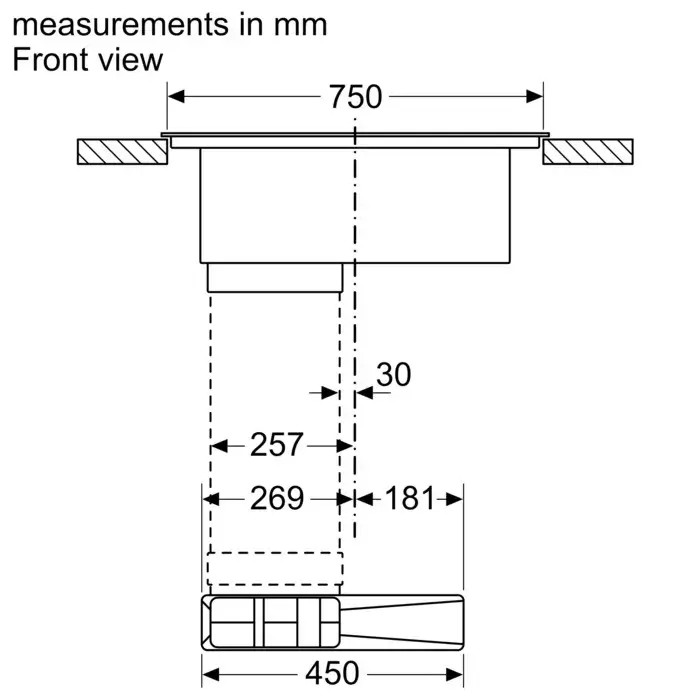

Required niche size (H x W x D): 223 x 750 x 490 mm
Minimum worktop thickness: 16 mm
Connected load: 7.4 kW
Power management options available for 16A, 13A or 10A connections, depending on household electrical installation.
Included Accessories

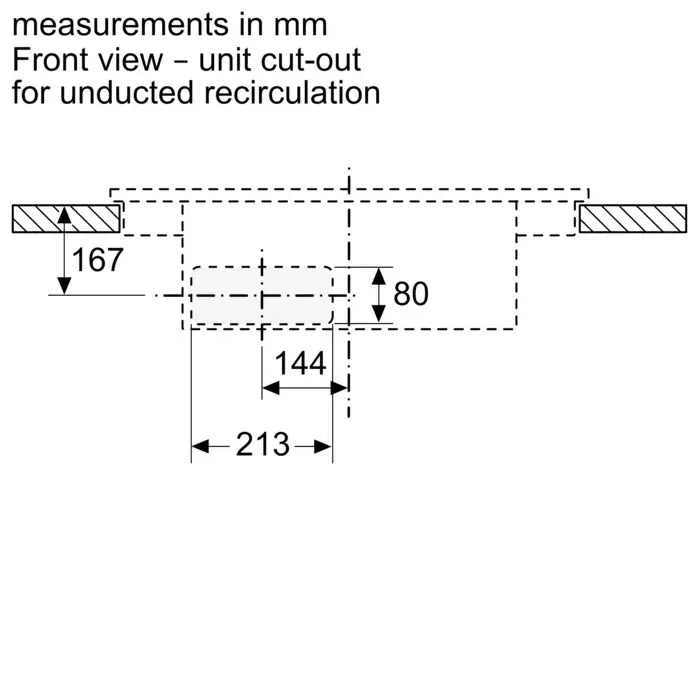

Clean Air Plus odor filter and slider for unducted recirculation included. Suitable for installation into a 60 cm base cabinet.

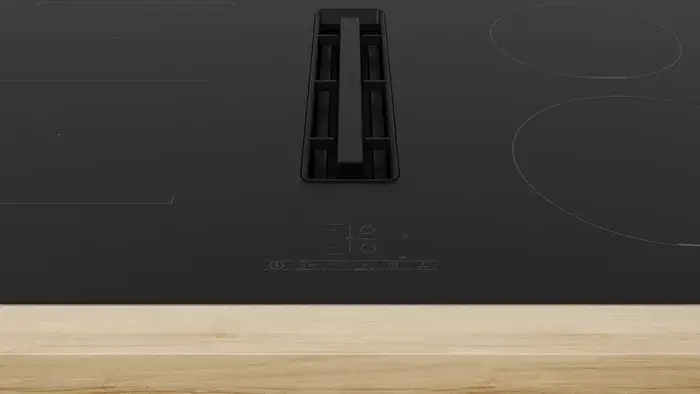

Integrated Downdraft Ventilation System
High-performance downdraft extractor fully integrated into the induction cooktop. Suitable for ducted or recirculated extraction, with differentiated software modes.
Automatic ventilation activation when cooking zones are in use, with delayed shut-off after cooking to remove residual odors. Manual control is also possible via TouchSelect.
Quiet and energy-efficient BLDC motor ensures powerful extraction with low noise levels. Optimized airflow allows long and complex ducting up to 8 meters.
Grease & Liquid Management
Easy-to-remove stainless-steel grease filters with 12 filtration layers achieve 94% grease filtration efficiency. All components are dishwasher-safe and heat-resistant.
Integrated liquid collection system with a total capacity of 900 ml ensures safety during accidental spillages. Watertight blower system provides added protection.
Ventilation Performance
Ducted extraction: 330 m³/h (min), 500 m³/h (max), 622 m³/h (boost)
Recirculated extraction: 252 m³/h (min), 441 m³/h (max), 595 m³/h (boost)
Noise levels (ducted): 61 dB (min), 69 dB (max), 74 dB (boost)
Noise levels (recirculated): 55 dB (min), 66 dB (max), 72 dB (boost)
Energy Efficiency
Energy Efficiency Class: B
Fluid Dynamic Efficiency: A
Average energy consumption: 57 kWh/year

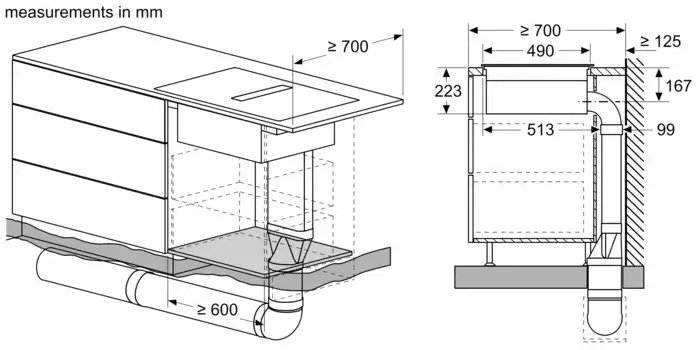

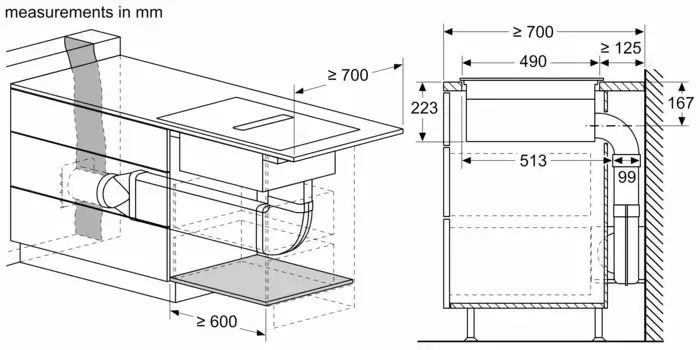

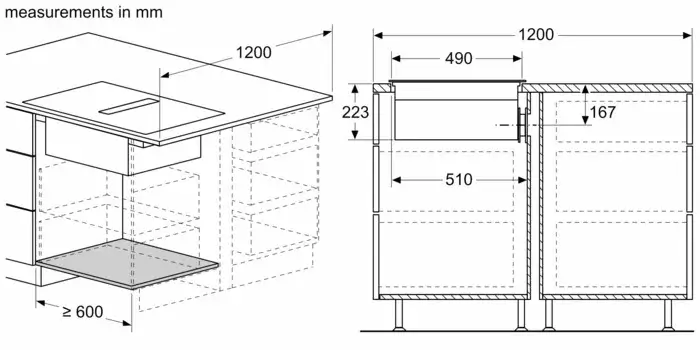

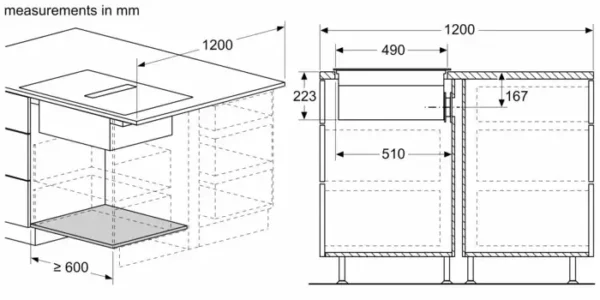

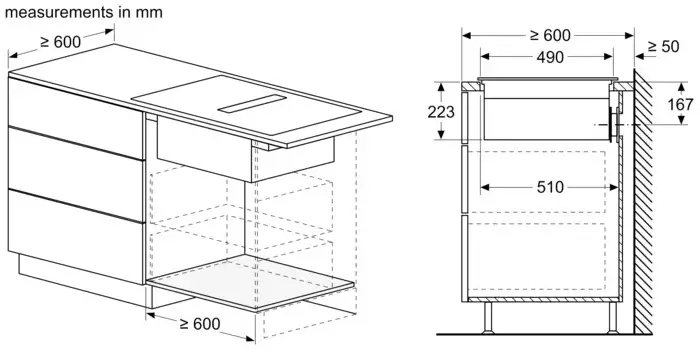

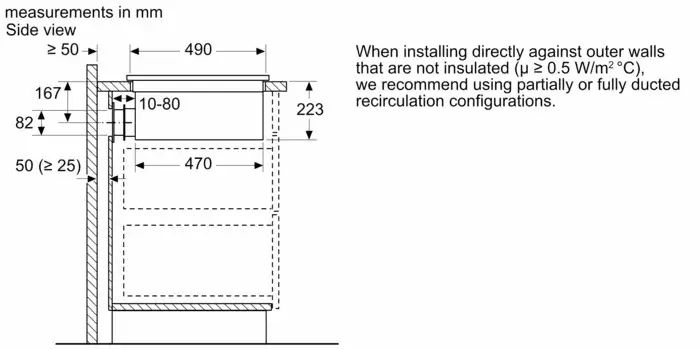

Planning & Installation Notes

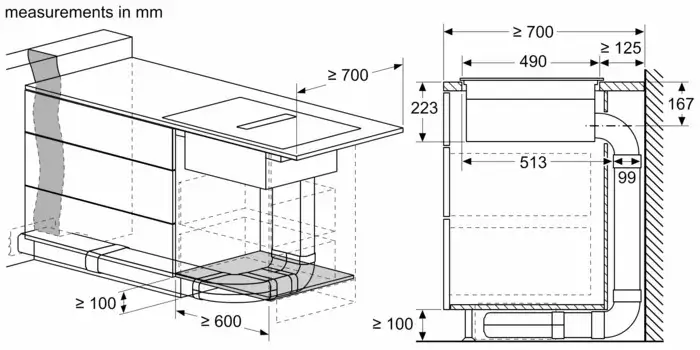

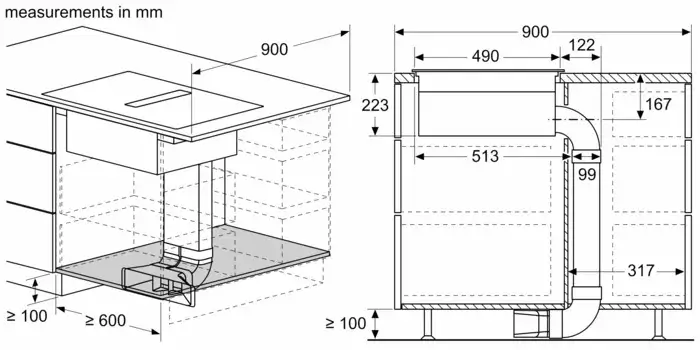

Suitable for island or wall installations. No false floor required below the appliance. Drawers and shelves below must be removable for access.
The appliance complies with IEC and UL safety standards. Overall weight is 26 kg and may require additional support for thin worktops.

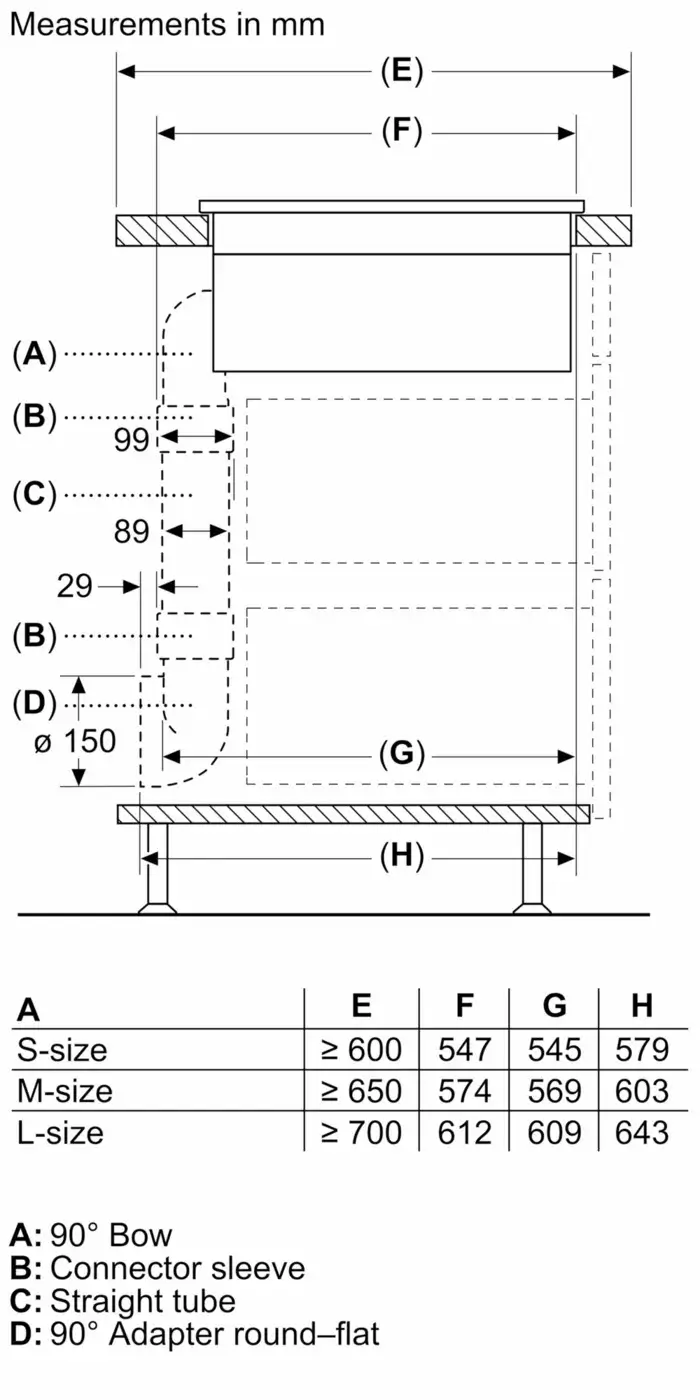

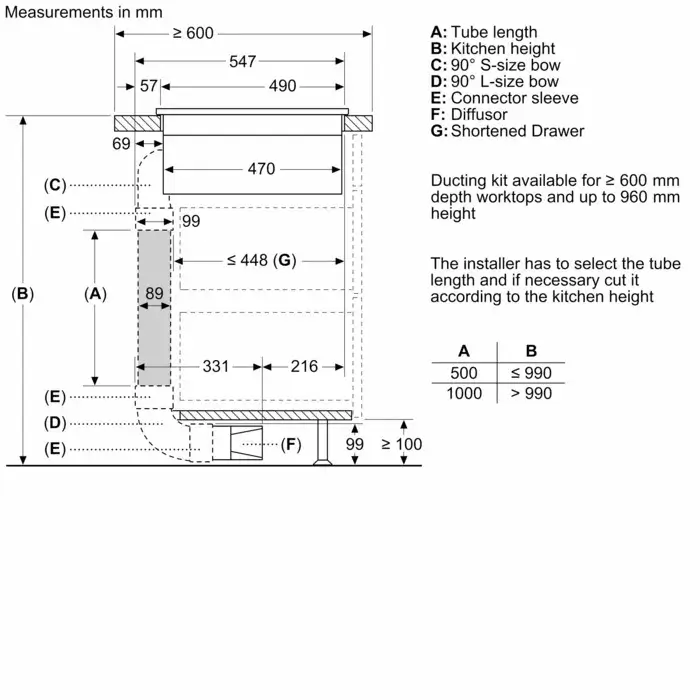

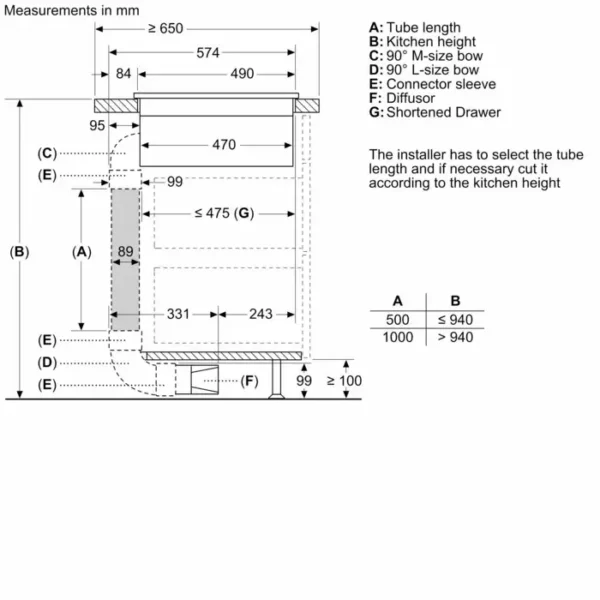

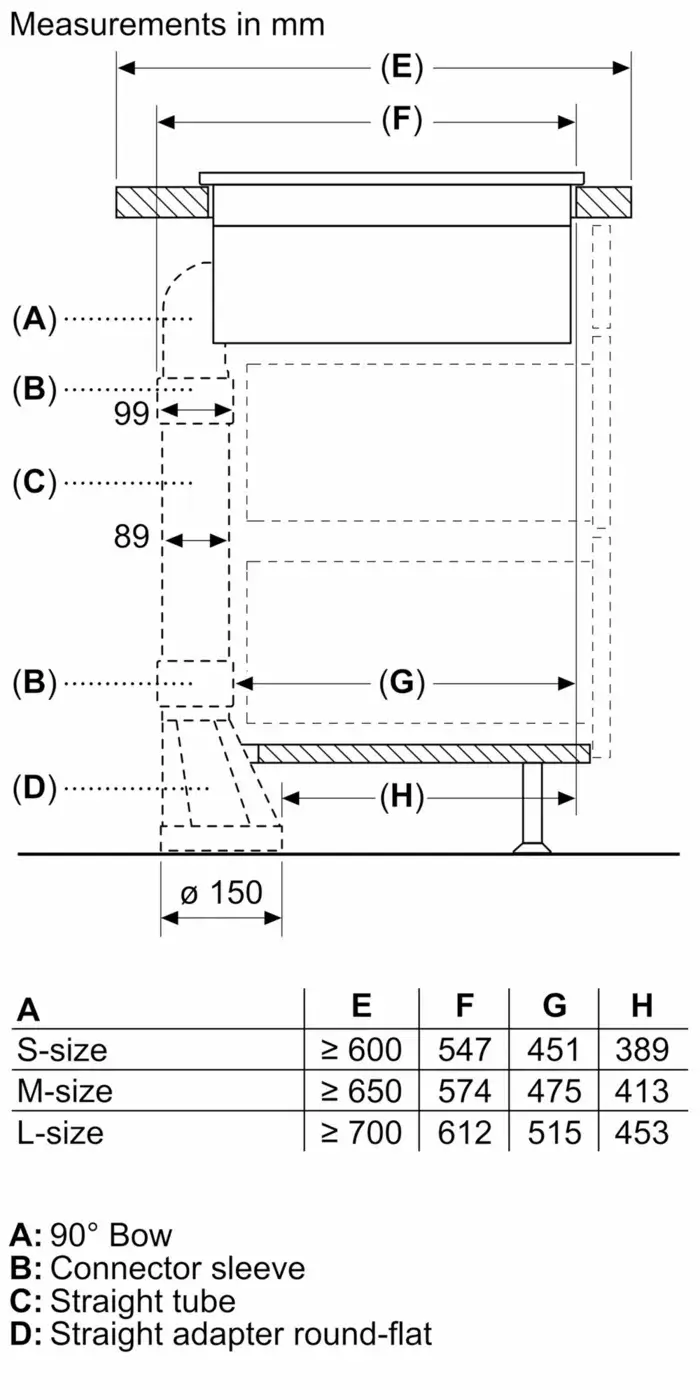

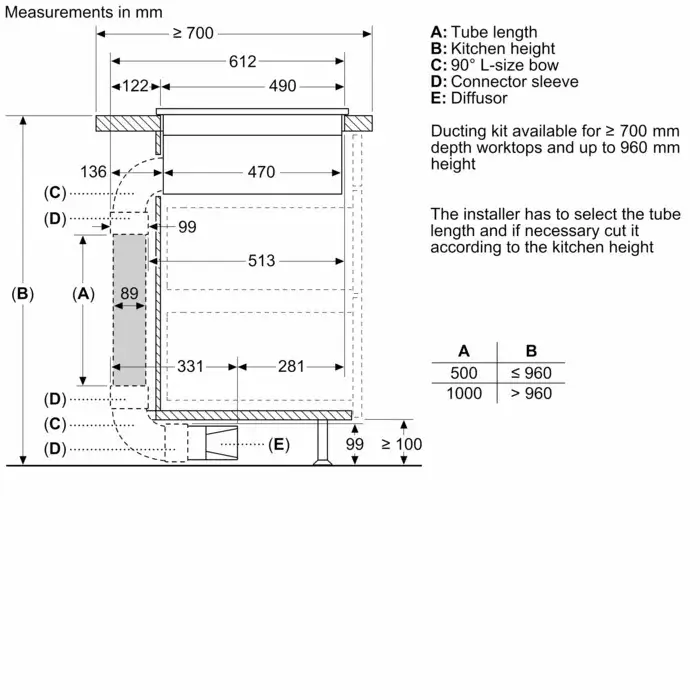

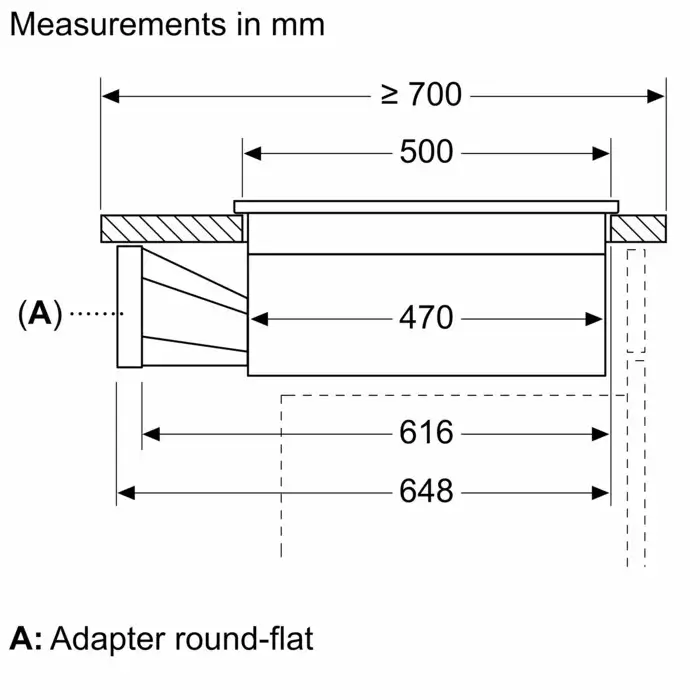

Recommended accessories and ducting kits are available for various installation configurations, including unducted, partly ducted, and fully ducted extraction systems.
